MIL-DTL-24643 LSDPS/LSTPS submarine cableMIL-DTL-24643/32, /33, /34, /711,000–1,500 psi Pressure-TightSubmarine Hull Penetration · LSZH

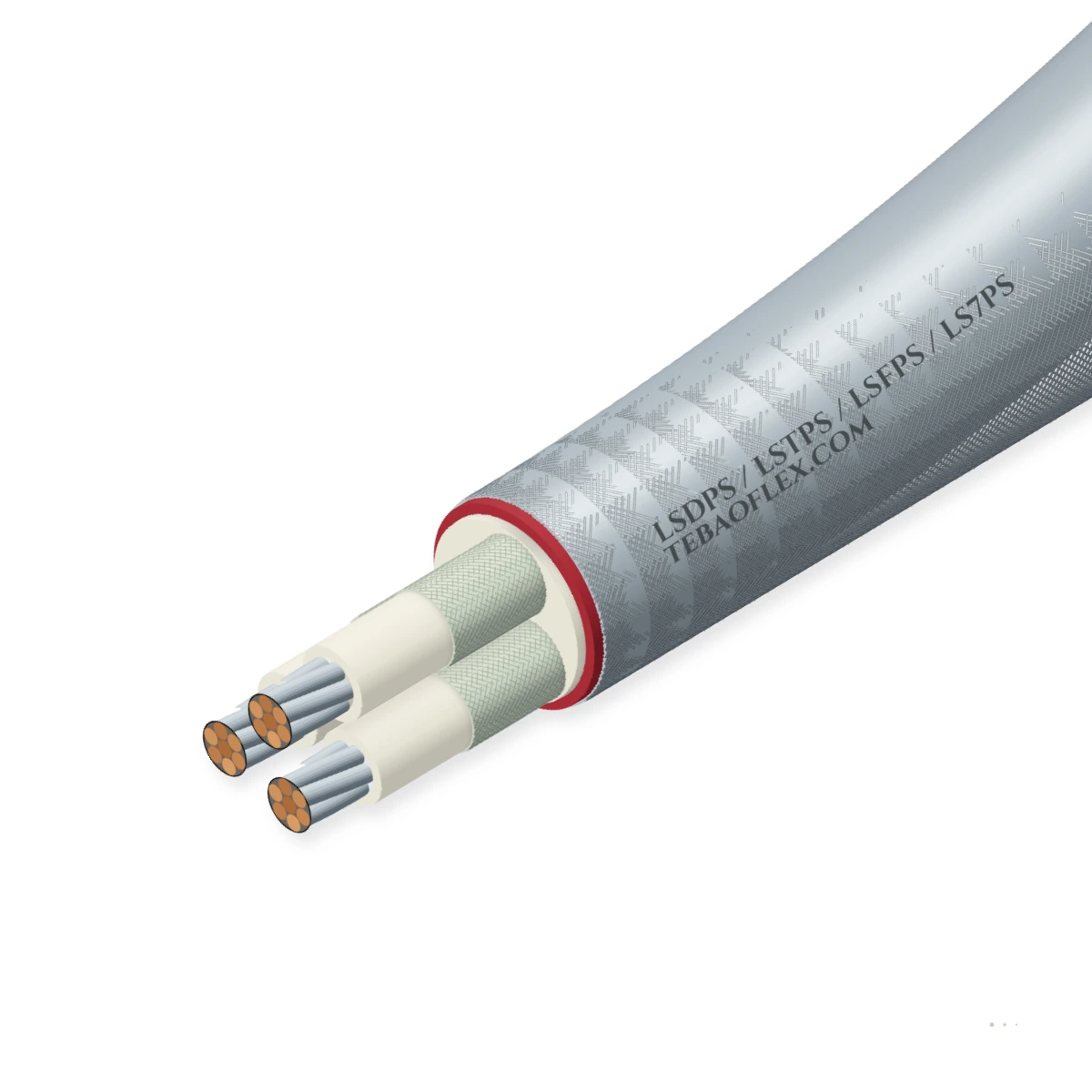

LSDPS / LSTPS / LSFPS / LS7PS MIL-DTL-24643 LSDPS / LSTPS / LSFPSMIL-DTL-24643 600 V 1,000–1,500 psi hydrostatic pressure-tight submarine outboard cable

US Navy submarine pressure-hull penetration and outboard cable family (LSDPS 2C, LSTPS 3C, LSFPS 4C, LS7PS 7C) built to MIL-DTL-24643/32, /33, /34 and /71 with water-blocked stranded tinned copper conductors, cross-linked polyolefin insulation.

Water-resistant
Flame-retardant
Oil-resistant
Approved
Order designation
M24643/33-05UN (LSTPS-23)
Outer Ø ≈
24.6 mm
Copper weight
390 kg/km
Total weight ≈
960 kg/km
Ampacity
58 A
All sizes (9)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Mil-Spec
M24643/32–/34
+ /71 (2C, 3C, 4C & 7C PS)
Hydro. press.
1,000–1,500 psi
6.9–10.3 MPa radial & axial
Rated voltage
600 V AC / DC
power, actuator & sonar circuits
Hosing limit
Zero hosing
blocked conductors & interstices
Compound
LSZH XLPO
reinforced pressure-hose jacket
Temp. rating
−30 to +105 °C
continuous conductor rating

Typical values for this cable type, based on MIL-DTL-24643/32, /33, /34 & /71 / NAVSEA Submarine Spec — confirmed in the datasheet and quotation for your order.

Application fit

Is LSDPS / LSTPS / LSFPS / LS7PS right for your machine?

Engineered for nuclear and conventional submarines, deep-submergence rescue vehicles (DSRV), autonomous underwater vehicles (AUV) and seabed sonar arrays where cables penetrate the pressure hull or operate outboard in free-flooding superstructure spaces at deep-diving hydrostatic pressures.

Immersion & wet locations

Suitable

Withstands 1,000 to 1,500 psi (6.9–10.3 MPa) open-end axial and radial seawater hydrostatic pressure without 'hosing' into the pressure.

Offshore platform & shipboard deck trays

Suitable

Installed in free-flooding submarine sail, ballast-tank and bow sonar dome spaces exposed to cyclic dive pressure.

Fixed installation

Suitable

Precision-controlled outer diameter and roundness for compression sealing in high-pressure hull stuffing tubes.

Typical machinesSubmarine Pressure-Hull Penetrations & Stuffing TubesOutboard Ballast Tank, Rudder & Stern-Plane ActuatorsBow & Flank Array Sonar Dome Power FeedersDeep-Submergence Vehicles (DSRV / ROV / UUV)

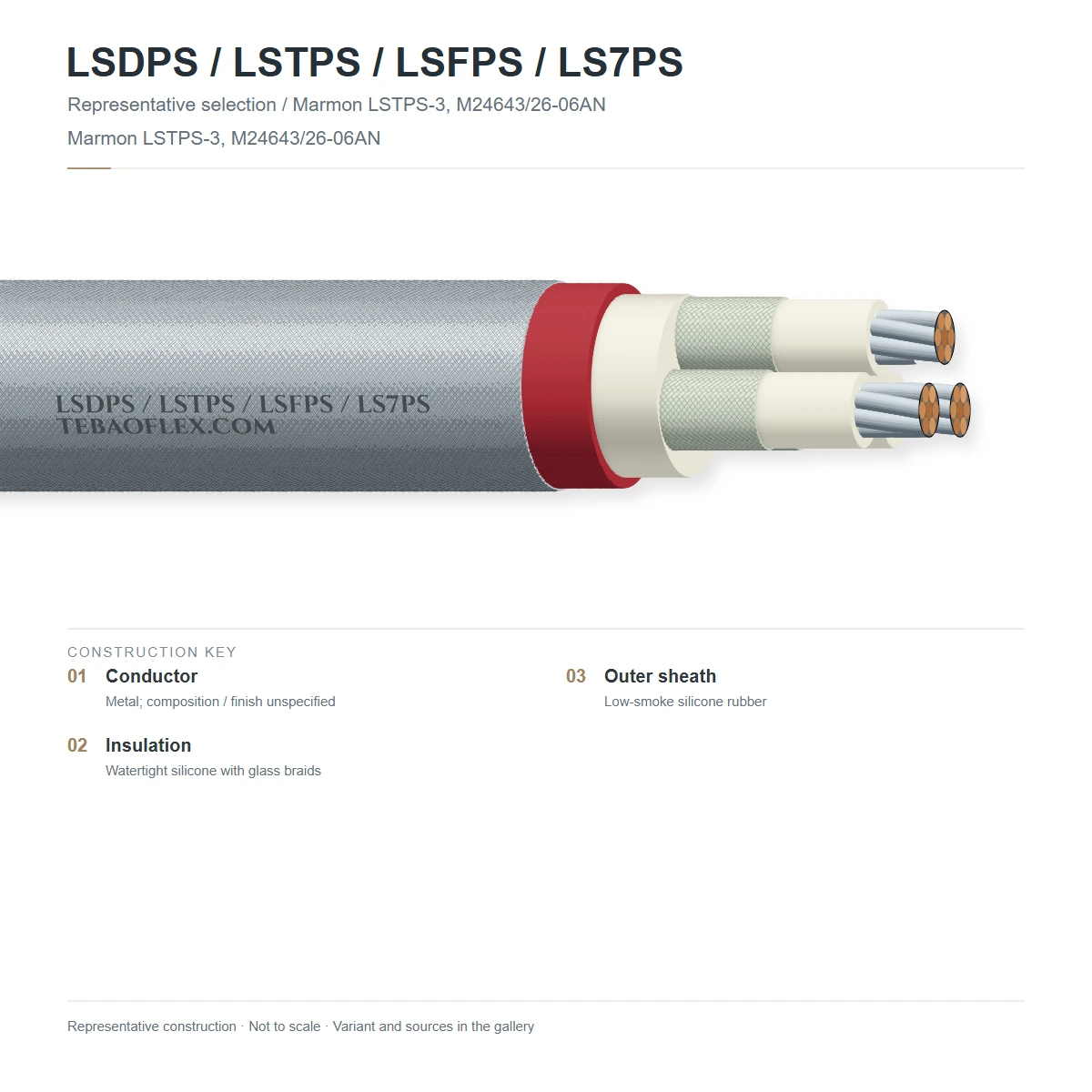

Construction

Layer by layer

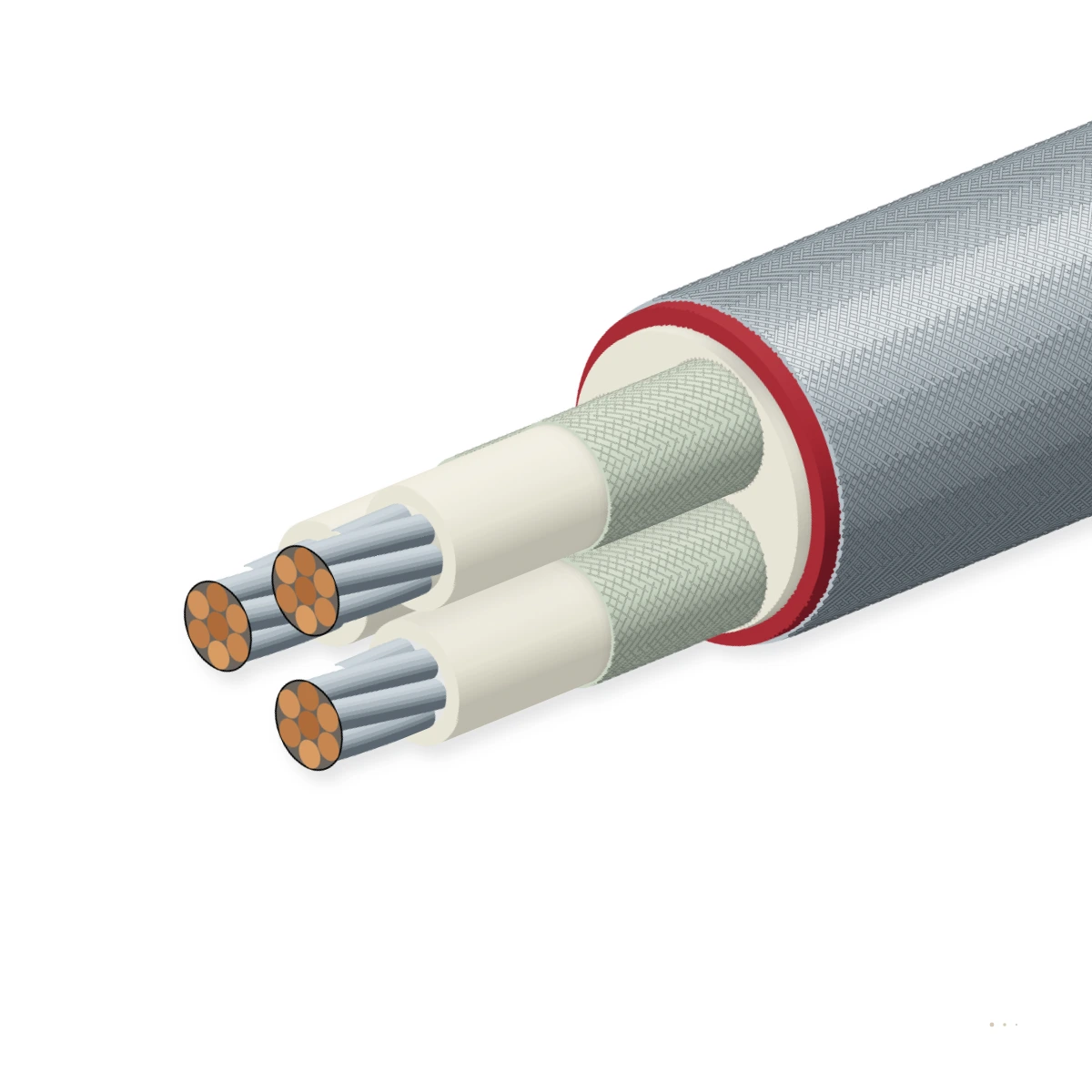

Shown: M24643/33-05UN (LSTPS-23, 3×6 AWG) 600 V pressure-tight submarine cable with strand-blocked tinned copper conductors, XLPO primary insulation, high-pressure elastomeric matrix, woven synthetic reinforcing fabric ply and precision-tolerance LSZH XLPO pressure-hose outer jacket.

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Strand-blocked concentric tinned copperASTM B33 tinned copper strands pressurized with flexible non-hardening water-blockingPrevents seawater from hosing down the inside of the copper conductor if the outboard end is severed at depth
2Cross-linked polyolefin (XLPO) dielectric105 °C thermoset low-smoke zero-halogen XLPO core insulationMaintains insulation resistance under 1,500 psi hydrostatic compression
3High-pressure elastomeric core matrix + reinforcingVoid-free vulcanised water-blocking filler matrix + high-tensile synthetic cordPrevents jacket collapse into core valleys under deep-ocean hydrostatic pressure
4Precision-round LSZH cross-linked polyolefin pressureHeavy-wall thermoset LSZH outer sheath ground/extruded to tight concentricity toleranceForms a leak-proof radial seal inside submarine hull-penetration stuffing glands

LSDPS (M24643/32 · 2-Conductor) & LSTPS (M24643/33 · 3-Conductor)

Double and Triple conductor Pressure-tight Submarine cables (#16 AWG to #1/0 AWG)

LSFPS (M24643/34 · 4-Conductor) & LS7PS (M24643/71 · 7-Conductor)

Four- and Seven-conductor Pressure-tight Submarine power and actuator control cables

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on MIL-DTL-24643/32, /33, /34 & /71 / NAVSEA Submarine Spec. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated operating voltage
600 V AC / DC rms
High-voltage AC dielectric test
2.5 to 3.0 kV AC rms for 5 minutes + IR ≥ 1,000 MΩ·1000 ft

Thermal

Conductor operating temperature
−30 °C to +105 °C continuous · +250 °C short-circuit
Thermal cycling & overload stability
Verified thermal ageing and short-circuit withstand per standard

Mechanical

Open-end axial hydrostatic 'hosing' test
Zero water leakage through conductor or core at 500–1,000 psi open-end
Radial hydrostatic pressure rating
1,000 to 1,500 psi (6.9–10.3 MPa) cyclic deep-submergence rating
Minimum bending radius
8 × OD (fixed hull & outboard routing)

Resistance

Low-smoke zero-halogen fire performance
IEEE 1202 vertical flame pass · Halogen < 0.2 % · Submarine atmosphere safe
Environmental & chemical durability
Resistant to moisture, industrial fluids and service ageing

Reference standards

Governing military specifications
MIL-DTL-24643/32 (LSDPS), /33 (LSTPS), /34 (LSFPS) & /71 (LS7PS)
Factory QA & material compliance
EN 10204 3.1 routine test certificate · RoHS 2 & REACH compliant

Identification

Designation code breakdown
LS (Low Smoke) + D/T/F/7 (2/3/4/7 cores) + PS (Pressure-tight Submarine)
Customs tariff (HS)
8544.49

Sizes

9 standard MIL-DTL-24643 LSDPS, LSTPS, LSFPS & LS7PS submarine cables

2-, 3-, 4- and 7-conductor 600 V pressure-tight submarine hull-penetration and outboard cables.

Military PIN, conductor size, outer diameter & ampacity
Military PIN / TypeConductorsRatingOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Ampacity
A		Min. bend R
mm		Enquiry
LSDPS (2C · M24643/32) & LSTPS (3C · M24643/33) Pressure-Tight Submarine Cables
M24643/32-01UN (LSDPS-4)2×14 AWG (2.08 mm²)600 V · 1000 psi14.24226518114
M24643/32-04UN (LSDPS-14)2×8 AWG (8.37 mm²)600 V · 1000 psi20.816559046166
M24643/33-01UN (LSTPS-4)3×14 AWG (2.08 mm²)600 V · 1000 psi15.06231015120
M24643/33-03UN (LSTPS-9)3×10 AWG (5.26 mm²)600 V · 1000 psi18.815551030150
M24643/33-05UN (LSTPS-23)3×6 AWG (13.3 mm²)600 V · 1000 psi24.639096058197
M24643/33-07UN (LSTPS-50)3×3 AWG (26.7 mm²)600 V · 1000 psi30.57801,62085244
LSFPS (4C · M24643/34) & LS7PS (7C · M24643/71) Pressure-Tight Submarine Cables
M24643/34-01UN (LSFPS-4)4×14 AWG (2.08 mm²)600 V · 1000 psi16.58338012132
M24643/34-03UN (LSFPS-9)4×10 AWG (5.26 mm²)600 V · 1000 psi21.020664525168
M24643/71-01UN (LS7PS-4)7×14 AWG (2.08 mm²)600 V · 1000 psi20.214558010162
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameter roundness and tolerance are tightly held to fit standard NAVSEA pressure-hull stuffing tubes.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
High-pressure open-end axial hosing & radial hydrostatic testZero axial water flow through severed sample at rated submarine test pressureEvery production lot
AC dielectric withstand, IR & precision OD concentricity gaugePasses 2.5–3.0 kV AC and stuffing-tube OD toleranceEvery reel

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

MIL-DTL-24643/32, /33, /34 & /71 Compliant1,000–1,500 psi Axial & Radial Pressure-TightSubmarine Low-Smoke Zero-Halogen (LSZH)

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX M24643/<slash>-<PIN> LSDPS/LSTPS/LSFPS/LS7PS 600V PS LSZH
Delivery form
Non-returnable fumigated wooden or steel drums
Standard lengths
250 m · 500 m · 1000 m standard drums
MOQ
250 m (stock sizes) · 500 m (custom)
Lead time
3–5 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFLSDPS / LSTPS / LSFPS / LS7PS MIL-DTL-24643 LSDPS / LSTPS / LSFPS – technical datasheet9 sizes · construction, technical data, approvalsXLSXLSDPS / LSTPS / LSFPS / LS7PS spec data (Excel)All 9 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is 'cable hosing' on a submarine and how do LSDPS / LSTPS / LSFPS / LS7PS prevent it?
If an outboard cable in the free-flooding sail or ballast tank is damaged at deep diving depth (e.g. 500–1,000 psi seawater pressure), water can be forced at high velocity through the microscopic air gaps between copper strands or between insulated cores right through the hull penetration into the manned pressure hull ('hosing'). PS-series submarine cables block every individual wire strand and every core interstice with cured elastomeric sealant and reinforce the outer jacket like a high-pressure hydraulic hose.
How does a 'Pressure-Tight' (PS) cable differ from a standard 'Watertight' (WT / UN) shipboard cable?
Standard Watertight (WT) surface-ship cables (such as LSDSGU or LSTCOP) are tested against low-head compartment flooding (typically 5–25 psi) between bulkheads. Pressure-Tight Submarine (PS) cables (LSDPS, LSTPS, LSFPS, LS7PS) are engineered and hydrostatic-tested for deep-ocean diving pressures of 500 to 1,500 psi.
Why is outer diameter concentricity critical on LSDPS and LSTPS cables?
Submarine hull penetrations use high-pressure compression stuffing tubes or moulded neoprene/polyurethane bulkhead glands. Any ovality or core-valley sink marks on the cable jacket would prevent a 1,500 psi radial seal.
What factory routine tests and certificates are supplied with LSDPS / LSTPS / LSFPS / LS7PS?
Every production drum of LSDPS / LSTPS / LSFPS / LS7PS undergoes 100 % conductor DC resistance measurement at 20 °C, high-voltage AC/DC dielectric withstand testing, and dimensional verification per MIL-DTL-24643/32, /33, /34 & /71 / NAVSEA Submarine Spec, supplied with an EN 10204 3.1 inspection certificate.
