BS 7629-1 Screened Fire-Resistant Alarm Cable300/500 V screened fire-resistant LSZH alarm & emergency lighting cable (Standard 30 / Enh

BS 7629-1 is the benchmark UK 300/500 V screened fire-resistant cable for BS 5839-1 fire detection, voice evacuation and BS 5266-1 emergency lighting systems. Constructed with Damage-Resistant Insudite/silicone-mica insulation, laminated aluminium/copolymer sc

PH30 / PH120

Al-PET + Full CPC

BS 7629-1 / BS 5839-1

Cores × mm²

Order designation: BS 7629-1 Std 2×2.5+E
Outer Ø ≈: 9.4 mm
Copper weight: 72 kg/km
Total weight ≈: 138 kg/km
Min. bend R: 56 mm

All sizes (13)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 300/500 V
Fire categories: Std 30 / Enh 120
Screen & CPC: Al-PET + Cu CPC
Insulation: EI5 / Mica + EI5
Operating temp: -20 to +70 °C
Min. bend radius: 6 × cable OD

Typical values for this cable type, based on BS 7629-1 / BS 5839-1 — confirmed in the datasheet and quotation for your order.

Application fit

Is BS 7629-1 right for your machine?

Specified across commercial buildings, hospitals, schools, airports and rail stations for addressable fire alarm loops, sounder/beacon circuits, voice alarm PA/VA lines and central-battery emergency lighting.

Fixed installation

Suitable

Direct clipping with metal P-clips, tray routing or trunking per BS 5839-1 Clause 26.

Switchgear & control cabinet wiring

Suitable

Terminates cleanly into addressable FACP loop cards, Apollo/Hochiki detector bases and nylon/brass glands.

TBM gantry & advancing tunnel reel

Suitable

LTS3 zero-halogen low-smoke sheath satisfies underground station and escape corridor rules.

Motorised monospiral reel

Not suitable

Solid Class 1 / stranded Class 2 conductors and bonded foil screen are for fixed installation only.

S07HXCHX-F screened flex

Typical machinesFire detection & alarm (BS 5839)Emergency escape lighting (BS 5266)Voice evacuation (PA/VA)Hospitals & multi-phase evacuationSchools, hotels & offices

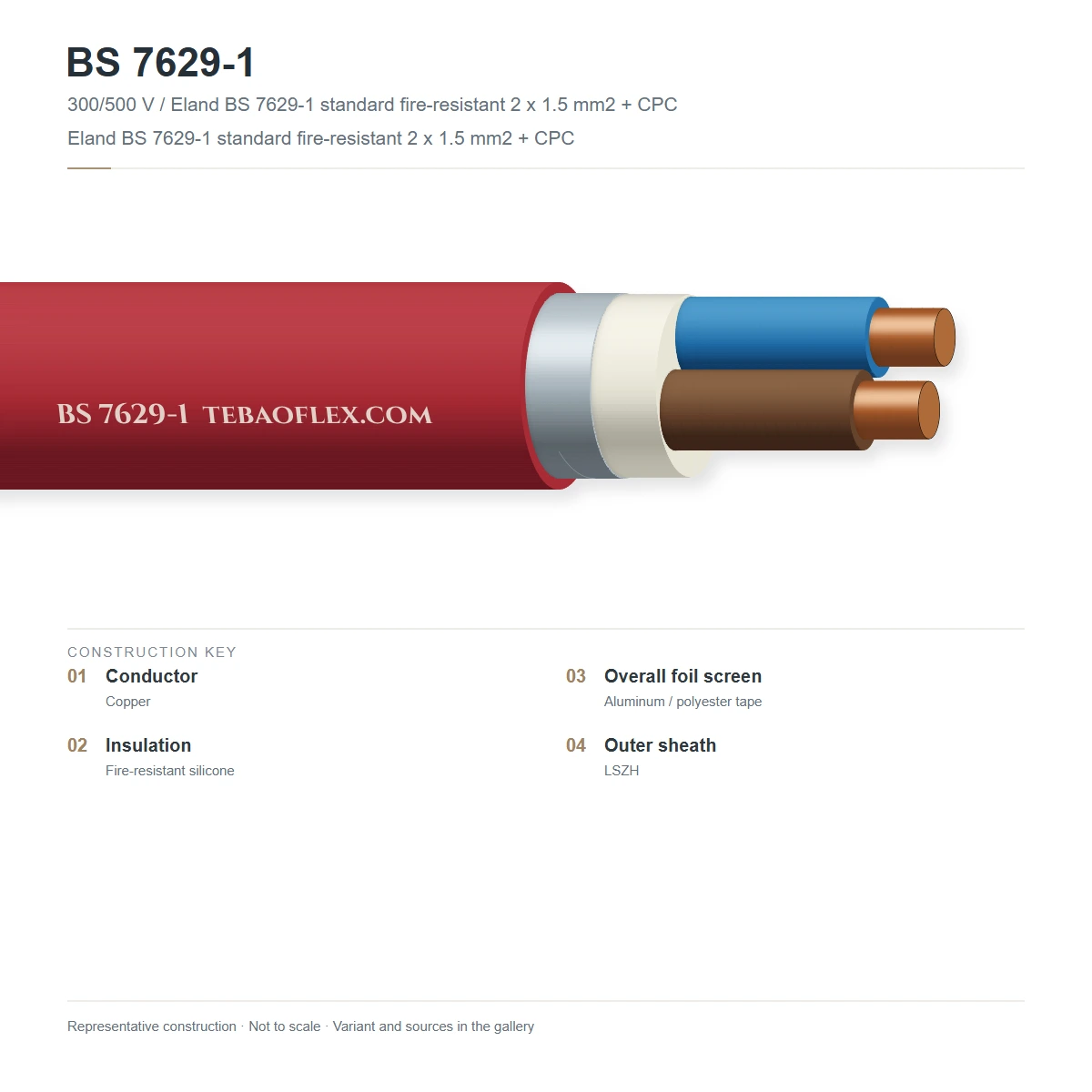

Construction

Layer by layer

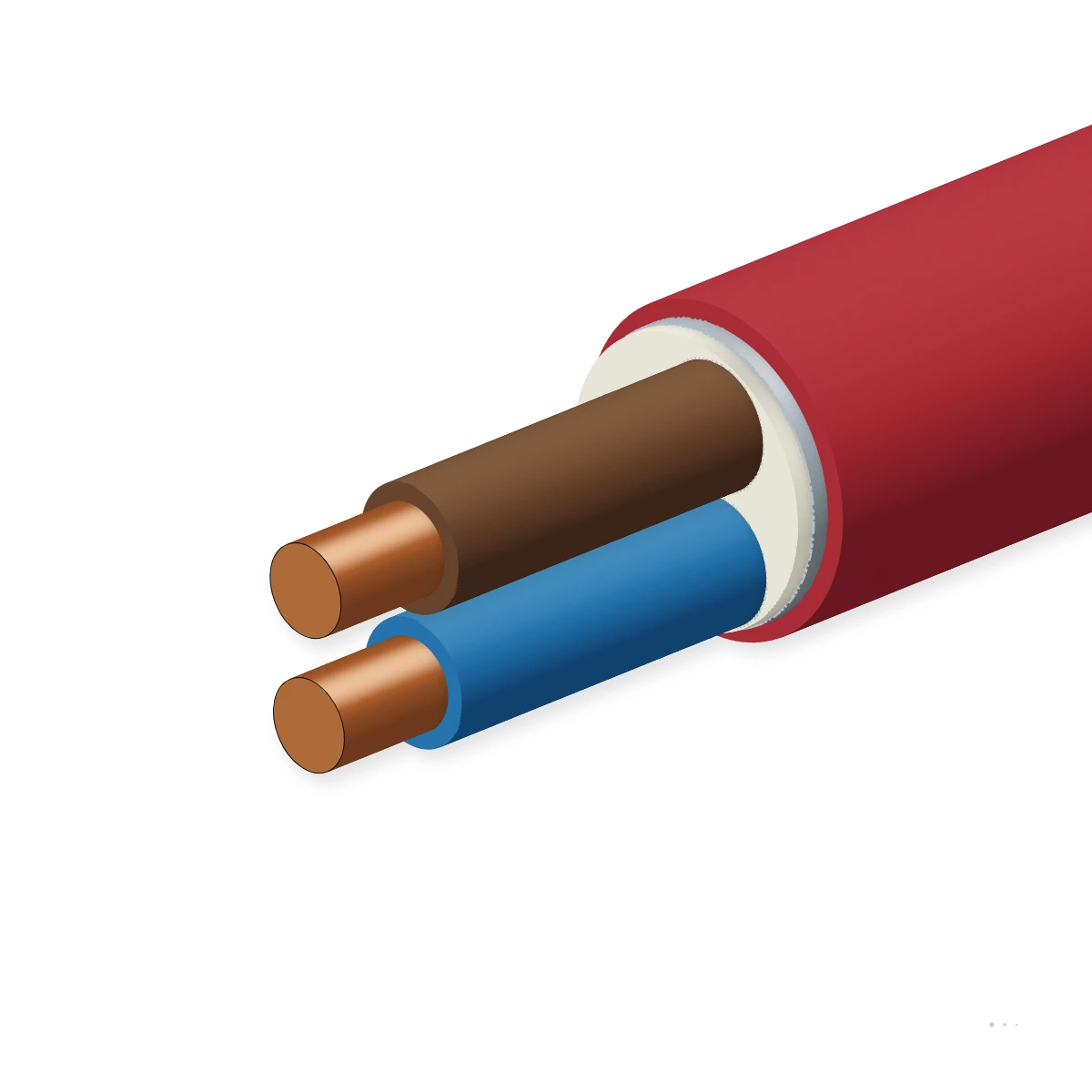

Plain annealed copper conductor (Class 1/2) + fire-resistant EI5/mica composite insulation + full-size uninsulated tinned copper CPC + bonded Al/copolymer screen + red or white LTS3 LSZH sheath.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Plain annealed copper	Solid Class 1 (1.0–2.5 mm²) or stranded Class 2 (4.0 mm²) copper per BS EN 60228BS EN 60228
2	Mica-glass fire barrier (Enhanced)	Glass-mica tape applied under insulation on Enhanced 120 grade for 930 °C impact + water survivalBS 8434-2
3	Fire-resistant thermoset insulation	Cross-linked mineral-ceramic silicone / damage-resistant EI5 compound per BS 7655-1.5BS 7655-1.5
4	Full-size circuit protective conductor	Uninsulated tinned annealed copper earth conductor matching phase cross-section, laid in direct contact with screenBS 7629-1
5	Bonded aluminium/copolymer tape	Longitudinal aluminium/PET tape bonded to outer sheath for automatic stripping and 100 % electrostatic screeningBS 7629-1
6	LTS3 LSZH outer sheath	Thermoplastic low-smoke zero-halogen compound type LTS3 per BS 7655-6.1 (Red for fire alarm, White for emergency lighting)BS 7655-6.1

BS 7629-1 Standard 30 (PH30)

Meets BS 5839-1 Standard grade: BS EN 50200 PH30 & PH60 (842 °C with shock), BS 8434-1 (30 min fire + impact + water) and BS 6387 CWZ.

BS 7629-1 Enhanced 120 (PH120)

Meets BS 5839-1 Enhanced grade: BS EN 50200 PH120 (120 min) and BS 8434-2 (120 min at 930 °C flame + impact + water spray) for multi-story phased evacuation.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on BS 7629-1 / BS 5839-1. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 300/500 V
Routine AC test voltage: 2.0 kV rms for 5 minutes
Mutual capacitance @ 1 kHz: ≈95 pF/m (1.5 mm² 2-core)

Thermal

Operating temperature range: -20 °C to +70 °C
Max. short-circuit temperature: +250 °C
Recommended installation temp.: 0 °C to +60 °C

Mechanical

Minimum internal bend radius: 6 × overall cable diameter
CPC conductor size: Equal to phase cross-section (1.0–4.0 mm²)

Resistance

Standard 30 fire test: BS EN 50200 PH30/PH60 + BS 8434-1 (30 min flame/impact/water) + BS 6387 CWZ
Enhanced 120 fire test: BS EN 50200 PH120 + BS 8434-2 (930 °C, 60 min flame+shock + 60 min flame+shock+water)
Halogen acid gas & smoke: BS EN 60754-1 (<0.5 % HCl) & BS EN 61034-2 (>60 % light transmittance)

Reference standards

Cable manufacture: BS 7629-1
System design codes: BS 5839-1, BS 5839-8, BS 5839-9 & BS 5266-1

Identification

Core colours: 2-core: Brown, Blue · 3-core: Brown, Black, Grey · 4-core: Blue, Brown, Black, Grey
Sheath colours: Red (fire alarm) or White (emergency lighting)

Sizes

13 standard configurations (BS 7629-1)

Nominal dimensions, masses and electrical ratings for BS 7629-1 according to BS 7629-1 / BS 5839-1.

Dimensions & masses
Designation	Cores × mm²	Cross-section	Outer Ø ≈ mm	Copper kg/km	Total weight ≈ kg/km	Min. bend R fixed mm
BS 7629-1 standard series
BS 7629-1 Std 2×1.0+E	2×1.0 + 1.0 CPC	1.0 mm²	7.4	29	78	44
BS 7629-1 Std 2×1.5+E	2×1.5 + 1.5 CPC	1.5 mm²	8.0	43	95	48
BS 7629-1 Std 2×2.5+E	2×2.5 + 2.5 CPC	2.5 mm²	9.4	72	138	56
BS 7629-1 Std 2×4.0+E	2×4.0 + 4.0 CPC	4.0 mm²	11.2	115	198	67
BS 7629-1 Std 3×1.5+E	3×1.5 + 1.5 CPC	1.5 mm²	8.6	58	116	52
BS 7629-1 Std 3×2.5+E	3×2.5 + 2.5 CPC	2.5 mm²	10.1	96	168	61
BS 7629-1 Std 4×1.5+E	4×1.5 + 1.5 CPC	1.5 mm²	9.5	72	140	57
BS 7629-1 Std 4×2.5+E	4×2.5 + 2.5 CPC	2.5 mm²	11.2	120	205	67
BS 7629-1 Std 7×1.5+E	7×1.5 + 1.5 CPC	1.5 mm²	11.6	115	215	70
BS 7629-1 Enh 2×1.5+E	2×1.5 + 1.5 CPC (Enh)	1.5 mm²	8.5	43	108	51
BS 7629-1 Enh 2×2.5+E	2×2.5 + 2.5 CPC (Enh)	2.5 mm²	9.9	72	152	59
BS 7629-1 Enh 4×1.5+E	4×1.5 + 1.5 CPC (Enh)	1.5 mm²	10.1	72	158	61
BS 7629-1 Enh 4×2.5+E	4×2.5 + 2.5 CPC (Enh)	2.5 mm²	11.8	120	224	71

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Nominal outer diameters and weights are subject to manufacturing tolerances per BS 7629-1 / BS 5839-1.

Electrical data
Cores × mm²	Max. DC R @ 20 °C Ω/km	Current in air A	Current in duct/tray A
2×1.0 + 1.0 CPC	18.100	15	13
2×1.5 + 1.5 CPC	12.100	19	16
2×2.5 + 2.5 CPC	7.410	26	22
2×4.0 + 4.0 CPC	4.610	34	29
3×1.5 + 1.5 CPC	12.100	17	15
3×2.5 + 2.5 CPC	7.410	23	20
4×1.5 + 1.5 CPC	12.100	17	15
4×2.5 + 2.5 CPC	7.410	23	20
7×1.5 + 1.5 CPC	12.100	13	11
2×1.5 + 1.5 CPC (Enh)	12.100	19	16
2×2.5 + 2.5 CPC (Enh)	7.410	26	22
4×1.5 + 1.5 CPC (Enh)	12.100	17	15
4×2.5 + 2.5 CPC (Enh)	7.410	23	20

Current ratings apply at +30 °C ambient in free air and +25 °C in enclosed tray/conduit.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
2.0 kV AC dielectric & spark test	No breakdown at 2.0 kV rms for 5 minutes	100 % of reels/drums
Sample tests
BS EN 50200 PH30 / PH60 / PH120 fire with shock	Circuit survival under 842 °C flame and 5-minute hammer blows	LPCB / BASEC qualification
BS 8434-1 (30 min) & BS 8434-2 (120 min) fire + impact + water	Survival at 842 °C / 930 °C with direct impact and water spray	Standard & Enhanced qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

BS 7629-1BS 5839-1 Standard & EnhancedBS EN 50200 PH30 / PH60 / PH120BS 8434-1 & BS 8434-2BS 6387 CWZ

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX BS 7629-1 ENHANCED 120 2x1.5mm2+E 300/500V BS EN 50200 PH120 BS 8434-2 LSZH [year]

Delivery form: Fumigated export wooden drums or shrink-wrapped coils
Standard drum lengths: 500 m · 1000 m standard drums (cut lengths on request)
MOQ: 100 m (stock sizes) · 300–500 m (production)
Lead time: 2–4 weeks ex-works
Incoterms: EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFBS 7629-1 Screened Fire-Resistant Alarm Cable – technical datasheet13 sizes · construction, technical data, approvals XLSXBS 7629-1 spec data (Excel)All 13 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
